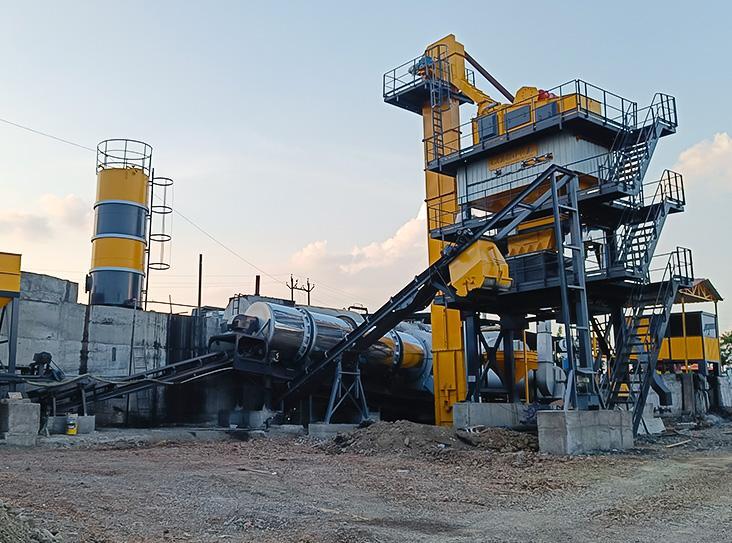

Asphalt Batch Mix Plant

Get a Price/Quote

MOQ : 1 Plant

Asphalt Batch Mix Plant Specification

Driven Type
Electric Motor

Fuel Type
Diesel/Furnace Oil/Coal (optional fuel feeding system)

Mount Type
Stationary (Skid Mounted/Optional Mobile)

Noise Level
<85 dB (A)

Hole Size
As per designed sieve for Aggregates

Tank Material
Mild Steel with Insulation

Hopper Capacity
3-5 m3 per aggregate bin

Compressor Type
Air Compressor for burner & pneumatic valves

Tank Dimensions (Mm X Mm X Mm)
Varies by Bitumen/Storage Tanks, e.g. 8000 x 2400 x 2400 mm

Temperature
160-180C (Mixing & drying temperature)

Air Pressure
7-8 bar

Coverage Area
Approximately 1500-3000 sq. meters, including storage space

Type
Asphalt Batch Mix Plant

Material
Mild Steel Structure, Heavy Duty Components

Capacity
80-160 TPH (Tons Per Hour) Depending on Model

Computerized
Yes

Automatic Grade
Automatic

Cooling System
Air Cooled and Water Spraying System

Vibration Frequency
3000-4200 rpm (for Screen Vibrators)

Drum Diameter
1.2 - 2.2 m (varies by model)

Power
120-250 kW (Total installed power, model dependent)

Size
Large Industrial Set-Up

Color
Yellow and Grey

Weight
Approx. 50,000 - 80,000 kg (varies by configuration)

Dimension (L*W*H)
18000 x 7000 x 12000 mm (Approximate, varies by model)

Mobility
Available as Semi-mobile with Modular Skid Frame

Safety Features
Emergency Stop, Safety Rails, Insulated Panels, Overload Protection

Control System
Fully Automatic PLC Based Control Panel with SCADA Option

Optional Attachments
Mobile Control Room, Bitumen Tank Heating, PMB/CRM Additive Feeders

Dryer Drum
Counterflow/Parallel Flow Drum System with Flights for Efficient Heat Exchange

Dust Collection
Multi-stage: Primary Cyclone, Secondary Bag House Filter

Filler Unit
Automatic Cement/Mineral Filler Feeding System

Hot Aggregate Hopper
Four/Five Compartments with Overflow Provisions

Hot Elevator
Belt/Bucket Elevator with Anti-spill Mechanism

Control Cabin
Insulated With Ergonomic Panel Layout and AC Provision

Bitumen Weighing System
Electronic Load Cell Based for Accuracy

Cold Bin Feeder
4-5 Bins with Individual Gate Adjustment and Vibrators

Mixing Unit
Twin Shaft/Paddle Forced Mixer with Wear-resistant Linings

Asphalt Batch Mix Plant About

The Asphalt Batch Mix Plant is sizzling and in demand for top-tier road construction projects. Crafted with exceptional precision, this astonishing machine features a fully automatic PLC-based control panel with a SCADA option for optimized performance. Its polished design incorporates a cold bin feeder with adjustable gates, superior dust collection through multi-stage filtration, and a highly efficient dryer drum system. With top-of-the-line safety measures, modular mobility, and robust mild steel construction, this plant delivers reliability and unmatched productivity. Buy online now to transform your asphalt production!

Commercial Applications and Surface Versatility

Asphalt Batch Mix Plants are engineered for a range of surfaces, making them ideal for roadways, highways, and urban streets. Their astonishing performance extends to airport runways, parking lots, and industrial courts, showcasing remarkable application diversity. Commercial contractors rely on this polished machinery for both new construction and resurfacing projects, thanks to its reliability and superior finish. The flexibility and efficiency of the plant make it a prime choice for infrastructure development throughout the commercial sector.

Delivery Timeframes, Export Markets & Order Convenience

Place your purchase order today and benefit from express shipping to ensure market value delivery timelines. Typical dispatches range from 3-5 weeks, adjusted for custom configurations. The manufacturer offers a flexible sample policy for genuine commercial clients. Asphalt Batch Mix Plants are sought-after in export markets, including South Asia, Africa, and the Middle East, backed by robust support and documentation. Their reliable supply ensures continued presence in key infrastructure growth markets worldwide.

FAQ's of Asphalt Batch Mix Plant:

Q: How does the fully automatic PLC-based control panel with SCADA benefit plant operators?

A: The PLC-based control panel with SCADA provides precise automation, real-time monitoring, and seamless data management, enabling operators to maintain quality and efficiency throughout the asphalt mixing process.

Q: What surfaces and projects are suitable for the Asphalt Batch Mix Plant?

A: This plant is ideal for roads, highways, airport runways, parking areas, and urban streets. Its exceptional versatility covers both new construction and resurfacing of various commercial and municipal infrastructure.

Q: When is express shipping available for export orders?

A: Express shipping options are available upon confirmation of the purchase order, with typical delivery times ranging from 3 to 5 weeks, depending on configuration and destination.

Q: Where is this Asphalt Batch Mix Plant primarily exported?

A: The plant is mainly supplied to India, South Asia, the Middle East, and Africa, meeting the demands of top commercial and government projects in developing infrastructure markets.

Q: What safety features are incorporated into this plant's design?

A: Safety features include emergency stop mechanisms, safety rails, insulated panels for operator protection, and overload protection to ensure secure and reliable operation.

Q: How does the dust collection and environmental control system work?

A: The multi-stage system consists of a primary cyclone and a secondary bag house filter, efficiently capturing dust and reducing emissions for an eco-friendly operation.
